项目仓库地址 https://github.com/sylar-yin/sylar/

基础介绍

完成sylar C++ Server Framework基础模块之后，又新增了websocket支持，环境变量模块，JSON支持，现在使用sylar框架搭建一个基于websocket的在线多人网页聊天室，样式如下：

访问这里加入聊天室：http://ayanami.blue:8080/html/index.html

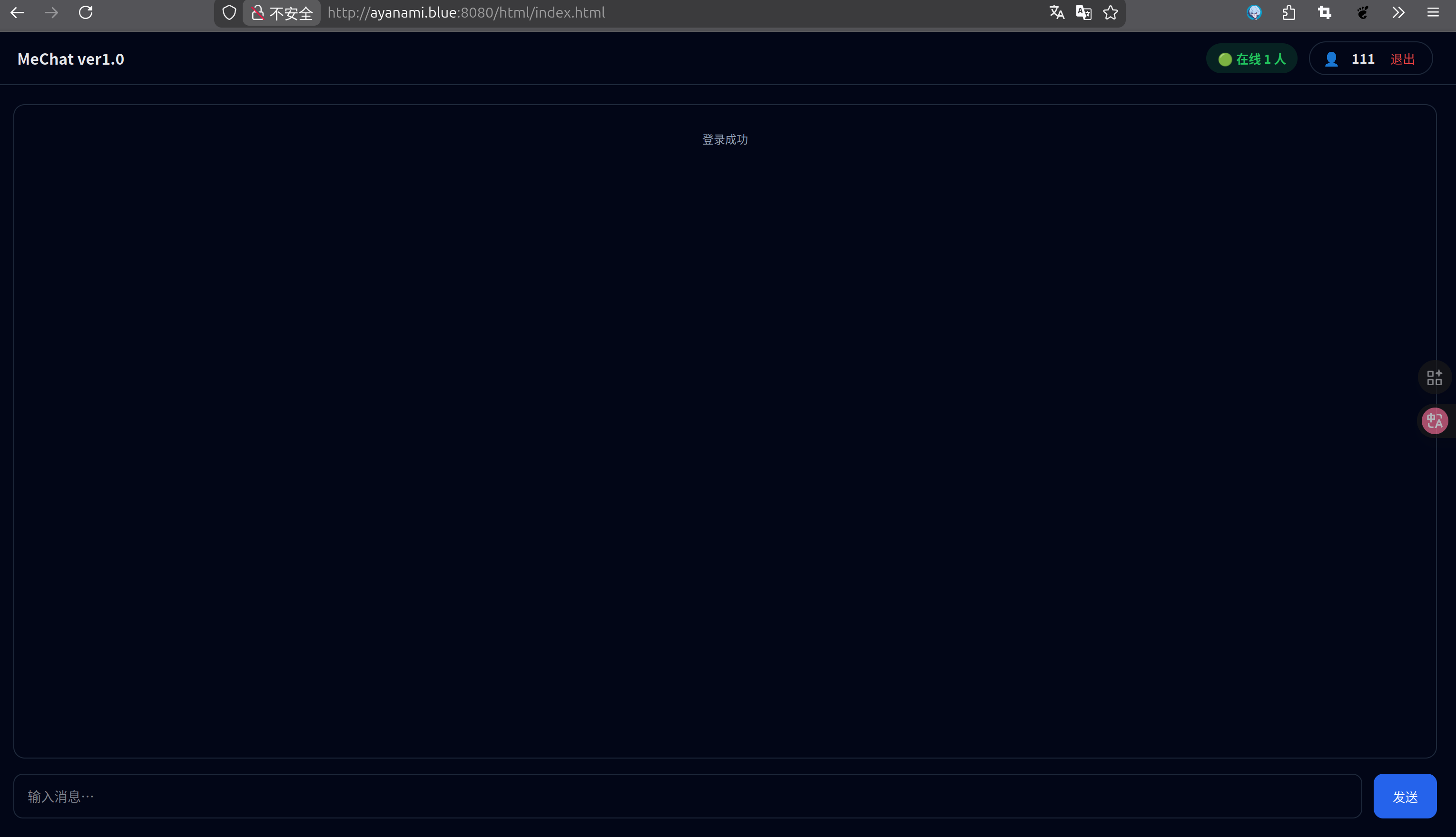

image-20260311143757232

image-20260311143900812

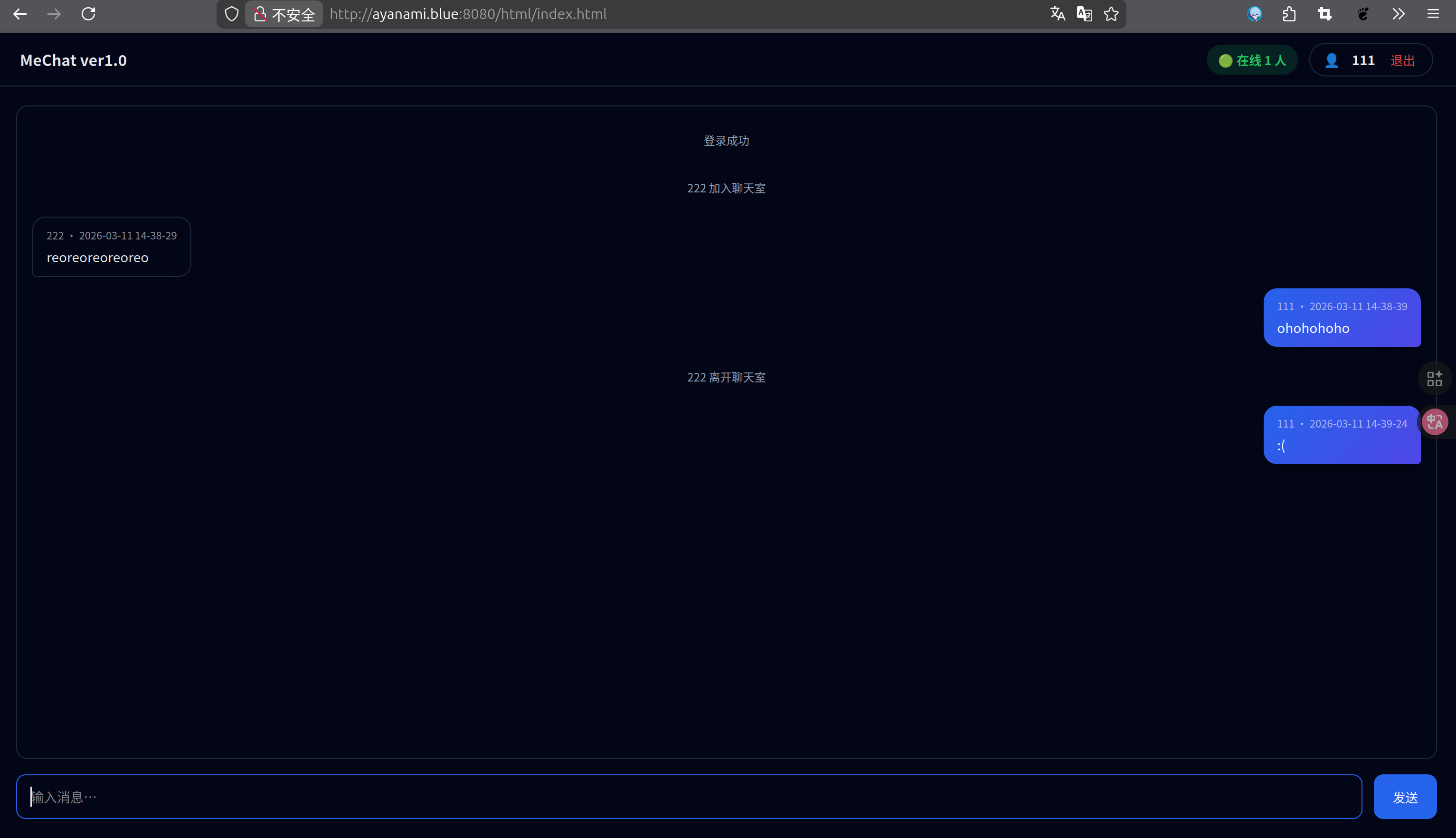

image-20260311143943304

项目结构

bin目录下存放可执行文件，yaml配置文件，日志文件以及网页html文件

build目录为构建目录

cmake目录存放自定义的cmake函数工具

src目录存放源码

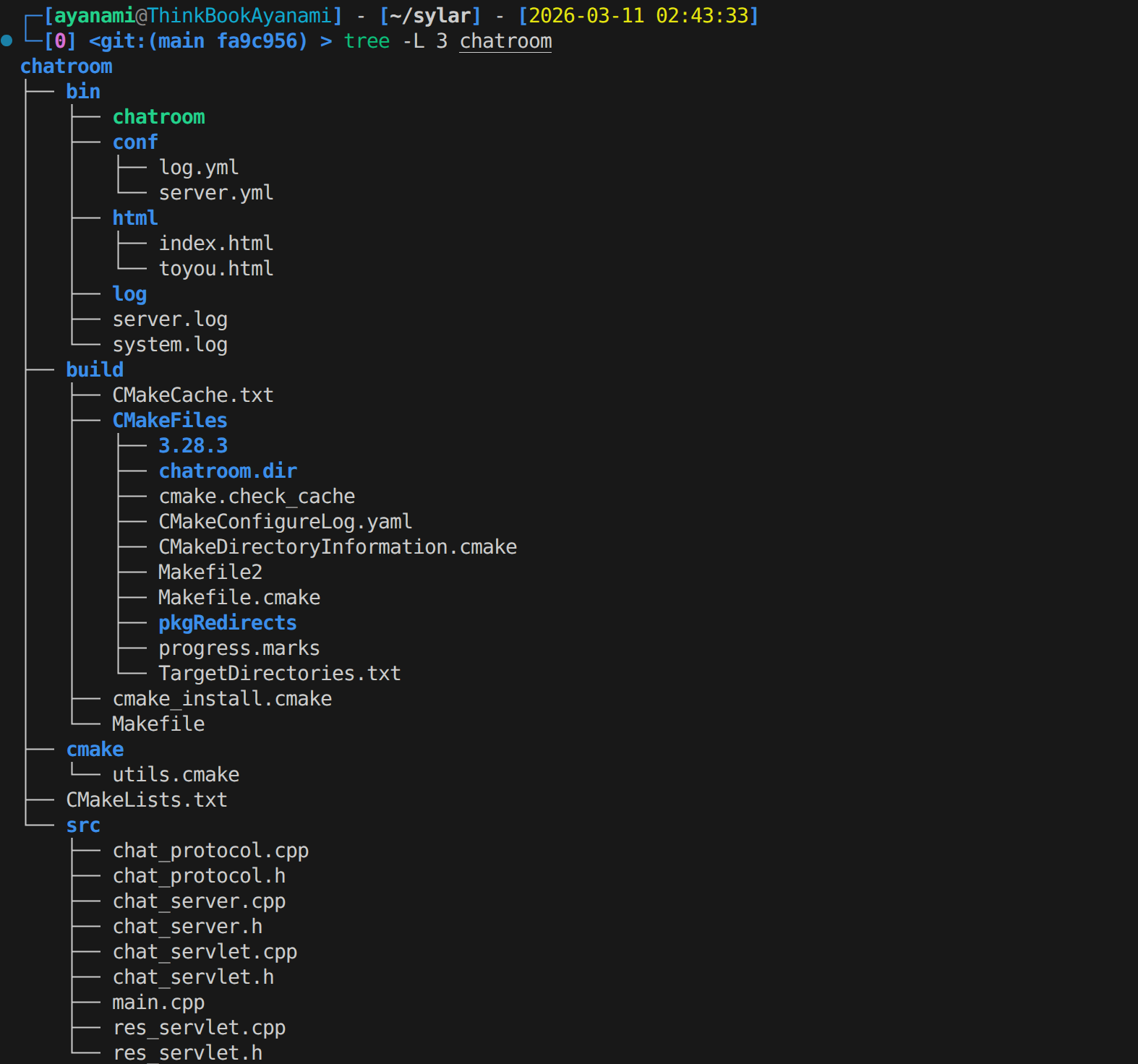

image-20260311144443791

源码解析

按照功能可分为5部分：

  • 服务器资源请求路由ResourceServlet
  • 聊天协议ChatMessage
  • 聊天功能路由ChatWSServlet
  • 聊天服务器ChatServer
  • main函数

ResourceServlet

继承自Servlet类，重载了handle方法，用于解析路径返回对应路径文件资源

class ResourceServlet : public sylar::http::Servlet {
public:
    typedef std::shared_ptr
<ResourceServlet> ptr;
    ResourceServlet(const std::string& path);
    virtual int32_t handle(sylar::http::HttpRequest::ptr request
                   , sylar::http::HttpResponse::ptr response
                   , sylar::http::HttpSession::ptr session) override;
private:
    std::string m_path;
};

ResourceServlet::ResourceServlet(const std::string& path)
    :Servlet("ResourceServlet")
    ,m_path(path){
}

int32_t ResourceServlet::handle(sylar::http::HttpRequest::ptr request
                        , sylar::http::HttpResponse::ptr response
                        , sylar::http::HttpSession::ptr session) {
    // 获取文件资源请求路径
    auto path = m_path + "/" + request->getPath();
    SYLAR_LOG_INFO(g_logger) << "handle path=" << path;
    if(path.find("..") != std::string::npos) {
        response->setBody("invalid path");
        response->setStatus(sylar::http::HttpStatus::NOT_FOUND);
        return 0;
    }

    // 获取服务器文件资源
    std::ifstream ifs(path);
    if(!ifs) {
        response->setBody("invalid path");
        response->setStatus(sylar::http::HttpStatus::NOT_FOUND);
        return 0;
    }

    std::stringstream ss;
    std::string line;
    while(std::getline(ifs, line)) {
        ss << line << std::endl;
    }

    // 写入响应报文
    response->setBody(ss.str());
    response->setHeader("content-type", "text/html;charset=utf-8");
    return 0;
}

ChatMessage

聊天协议，使用JOSN字符串表示消息报文，在类中使用std::map来存储信息，使用时调用toString方法转成JSON字符串

class ChatMessage {
public:
    typedef std::shared_ptr
<ChatMessage> ptr;

    static ChatMessage::ptr Create(const std::string& v);
    ChatMessage();
    std::string get(const std::string& name);
    void set(const std::string& name, const std::string& val);
    std::string toString() const;
private:
    std::map<std::string, std::string> m_datas;
};

ChatMessage::ptr ChatMessage::Create(const std::string& v) {
    Json::Value json;
    if(!sylar::JsonUtil::FromString(json, v)) {
        return nullptr;
    }
    ChatMessage::ptr rt(new ChatMessage);
    auto names = json.getMemberNames();
    for(auto& i : names) {
        rt->m_datas[i] = json[i].asString();
    }
    return rt;
}

ChatMessage::ChatMessage() {
}

std::string ChatMessage::get(const std::string& name) {
    auto it = m_datas.find(name);
    return it == m_datas.end() ? "" : it->second;
}

void ChatMessage::set(const std::string& name, const std::string& val) {
    m_datas[name] = val;
}

std::string ChatMessage::toString() const {
    Json::Value json;
    for(auto& i : m_datas) {
        json[i.first] = i.second;
    }
    return sylar::JsonUtil::ToString(json);
}

ChatWSServlet

继承自WSServlet类，重载了onConnect，onClose函数，对应连接建立/关闭逻辑；也重载了handle函数，该函数解析聊天JSON字符串报文，根据type的值选择不同的处理逻辑

全局上开了一个std::map<std::string, sylar::http::WSSession::ptr> m_sessions来存储已连接的会话

聊天消息报文分为以下几类：

  • 登录消息
  • 退出消息
  • WebSocket ping pong 心跳处理
  • 发送消息
class ChatWSServlet : public sylar::http::WSServlet {
public:
    typedef std::shared_ptr
<ChatWSServlet> ptr;
    ChatWSServlet();
    virtual int32_t onConnect(sylar::http::HttpRequest::ptr header
                              ,sylar::http::WSSession::ptr session) override;
    virtual int32_t onClose(sylar::http::HttpRequest::ptr header
                             ,sylar::http::WSSession::ptr session) override;
    virtual int32_t handle(sylar::http::HttpRequest::ptr header
                           ,sylar::http::WSFrameMessage::ptr msg
                           ,sylar::http::WSSession::ptr session) override;
};

ChatWSServlet::ChatWSServlet()
    :sylar::http::WSServlet("chat_servlet") {
}

int32_t ChatWSServlet::onConnect(sylar::http::HttpRequest::ptr header
                              ,sylar::http::WSSession::ptr session) {
    SYLAR_LOG_INFO(g_logger) << "onConnect " << session;
    return 0;
}

int32_t ChatWSServlet::onClose(sylar::http::HttpRequest::ptr header,
                              sylar::http::WSSession::ptr session) {
    auto id = header->getHeader("$id");
    SYLAR_LOG_INFO(g_logger) << "onClose " << session << " id=" << id;

    if(!id.empty()) {
        session_del(id);

        ChatMessage::ptr nty(new ChatMessage);
        nty->set("type", "user_leave");
        nty->set("time", sylar::Time2Str());
        nty->set("name", id);

        session_notify(nty, nullptr);

        notify_online_count();
    }
    return 0;
}

int32_t ChatWSServlet::handle(sylar::http::HttpRequest::ptr header,
                             sylar::http::WSFrameMessage::ptr msgx,
                             sylar::http::WSSession::ptr session) {
    SYLAR_LOG_DEBUG(g_logger) << "handle " << session
            << " opcode=" << msgx->getOpcode()
            << " data=" << msgx->getData();

    auto msg = ChatMessage::Create(msgx->getData());
    auto id = header->getHeader("$id");

    // 解析失败，直接认为连接异常
    if(!msg) {
        if(!id.empty()) {
            sylar::RWMutex::WriteLock lock(m_mutex);
            m_sessions.erase(id);
        }
        return 1;
    }

    auto type = msg->get("type");

    /********************* 心跳处理 *********************/
    if(type == "ping") {
        ChatMessage::ptr pong(new ChatMessage);
        pong->set("type", "pong");
        pong->set("time", sylar::Time2Str());
        return SendMessage(session, pong);
    }

    ChatMessage::ptr rsp(new ChatMessage);

    /********************* 登录 *********************/
    if(type == "login_request") {
        rsp->set("type", "login_response");
        auto name = msg->get("name");

        if(name.empty()) {
            rsp->set("result", "400");
            rsp->set("msg", "name is null");
            return SendMessage(session, rsp);
        }

        if(!id.empty()) {
            rsp->set("result", "401");
            rsp->set("msg", "logined");
            return SendMessage(session, rsp);
        }

        if(session_exists(name)) {
            rsp->set("result", "402");
            rsp->set("msg", "name exists");
            return SendMessage(session, rsp);
        }

        id = name;
        header->setHeader("$id", id);
        session_add(id, session);

        notify_online_count();

        rsp->set("result", "200");
        rsp->set("msg", "ok");

        ChatMessage::ptr nty(new ChatMessage);
        nty->set("type", "user_enter");
        nty->set("time", sylar::Time2Str());
        nty->set("name", id);
        session_notify(nty, session);

        return SendMessage(session, rsp);
    }

    /********************* 退出登录（新增） *********************/
    if(type == "logout_request") {
        rsp->set("type", "logout_response");

        if(id.empty()) {
            rsp->set("result", "403");
            rsp->set("msg", "not login");
            return SendMessage(session, rsp);
        }

        // 从会话表中移除
        {
            sylar::RWMutex::WriteLock lock(m_mutex);
            m_sessions.erase(id);
        }

        notify_online_count();

        // 通知其他用户
        ChatMessage::ptr nty(new ChatMessage);
        nty->set("type", "user_leave");
        nty->set("time", sylar::Time2Str());
        nty->set("name", id);
        session_notify(nty, session);

        // 清空 header 中的 id
        header->delHeader("$id");

        rsp->set("result", "200");
        rsp->set("msg", "ok");

        // 给自己一个响应（客户端收到后主动 close）
        return SendMessage(session, rsp);
    }

    /********************* 发消息 *********************/
    if(type == "send_request") {
        rsp->set("type", "send_response");

        auto m = msg->get("msg");
        if(m.empty()) {
            rsp->set("result", "500");
            rsp->set("msg", "msg is null");
            return SendMessage(session, rsp);
        }

        if(id.empty()) {
            rsp->set("result", "501");
            rsp->set("msg", "not login");
            return SendMessage(session, rsp);
        }

        rsp->set("result", "200");
        rsp->set("msg", "ok");

        ChatMessage::ptr nty(new ChatMessage);
        nty->set("type", "msg");
        nty->set("time", sylar::Time2Str());
        nty->set("name", id);
        nty->set("msg", m);

        session_notify(nty, nullptr);
        return SendMessage(session, rsp);
    }

    // 未知类型
    SYLAR_LOG_WARN(g_logger) << "unknown message type=" << type;
    return 0;
}

添加/删除会话，广播消息，广播在线人数功能：

bool session_exists(const std::string& id) {
    SYLAR_LOG_INFO(g_logger) << "session_exists id=" << id;
    sylar::RWMutex::ReadLock lock(m_mutex);
    auto it = m_sessions.find(id);
    return it != m_sessions.end();
}

void session_add(const std::string& id, sylar::http::WSSession::ptr session) {
    SYLAR_LOG_INFO(g_logger) << "session_add id=" << id;
    sylar::RWMutex::WriteLock lock(m_mutex);
    m_sessions[id] = session;
}

void session_del(const std::string& id) {
    SYLAR_LOG_INFO(g_logger) << "session_add del=" << id;
    sylar::RWMutex::WriteLock lock(m_mutex);
    m_sessions.erase(id);
}

int32_t SendMessage(sylar::http::WSSession::ptr session
                    , ChatMessage::ptr msg) {
    SYLAR_LOG_DEBUG(g_logger) << msg->toString() << " - " << session;
    return session->sendMessage(msg->toString()) > 0 ? 0: 1;
}

void session_notify(ChatMessage::ptr msg, sylar::http::WSSession::ptr session = nullptr) {
    sylar::RWMutex::ReadLock lock(m_mutex);
    auto sessions = m_sessions;
    lock.unlock();

    for(auto& i : sessions) {
        if(i.second == session) {
            continue;
        }
        SendMessage(i.second, msg);
    }
}

void notify_online_count() {
    size_t cnt = 0;
    {
        sylar::RWMutex::ReadLock lock(m_mutex);
        cnt = m_sessions.size();
    }

    ChatMessage::ptr nty(new ChatMessage);
    nty->set("type", "online_count");
    nty->set("count", std::to_string(cnt));

    session_notify(nty, nullptr); // 广播给所有在线用户
}

http服务器的端口和websocket服务器的端口注册了配置项

static sylar::ConfigVar
<uint16_t>::ptr g_http_server_port =
    sylar::Config::Lookup("http_server.port", (uint16_t)(8080),
        "http server port");

static sylar::ConfigVar
<uint16_t>::ptr g_websocket_server_port =
    sylar::Config::Lookup("websocket_server.port", (uint16_t)(8072),
        "websocket server port");

ChatServer

包含了一个http服务器和一个websocket服务器，http服务器用于监听建立连接并升级连接，连接升级之后使用websocket服务器通信

class ChatServer {
public:
    typedef std::shared_ptr
<ChatServer> ptr;
    ChatServer(int thread_count = 4, int argc = 1, char** argv = nullptr);
    void start();
private:
    sylar::http::HttpServer::ptr m_http_server;
    sylar::http::WSServer::ptr   m_ws_server;
};

ChatServer::ChatServer(int thread_count, int argc, char** argv) {
    SYLAR_LOG_INFO(g_logger) << "===============Server Initializing===============";

    // 初始化http服务器
    m_http_server = sylar::http::HttpServer::ptr(new sylar::http::HttpServer(true));
    auto http_addr = sylar::Address::LookupAnyIPAddress("0.0.0.0:8080");
    http_addr->setPort(g_http_server_port->getValue());
    if(!m_http_server->bind(http_addr)) {
        SYLAR_LOG_ERROR(g_logger) << "http_server bind fail";
        SYLAR_ASSERT2(false, "http_server bind fail");
    }

    auto dispatch = m_http_server->getServletDispatch();
    dispatch->addGlobServlet(
        "/html/*",
        sylar::http::ResourceServlet::ptr(
            new sylar::http::ResourceServlet(
                sylar::EnvMgr::GetInstance()->getCwd()
            )
        )
    );

    // 初始化websocket服务器
    m_ws_server = sylar::http::WSServer::ptr(new sylar::http::WSServer());
    auto ws_addr = sylar::Address::LookupAnyIPAddress("0.0.0.0:8072");
    ws_addr->setPort(g_websocket_server_port->getValue());
    if(!m_ws_server->bind(ws_addr)) {
        SYLAR_LOG_ERROR(g_logger) << "ws_server bind fail";
        SYLAR_ASSERT2(false, "ws_server bind fail");
    }

    auto ws_dispatch = m_ws_server->getWSServletDispatch();
    chat::ChatWSServlet::ptr servlet(new chat::ChatWSServlet());
    ws_dispatch->addServlet(
        "/sylar/chat",
        std::bind(
            &chat::ChatWSServlet::handle,
            servlet,
            std::placeholders::_1,
            std::placeholders::_2,
            std::placeholders::_3
        ),
        std::bind(
            &chat::ChatWSServlet::onConnect,
            servlet,
            std::placeholders::_1,
            std::placeholders::_2
        ),
        std::bind(
            &chat::ChatWSServlet::onClose,
            servlet,
            std::placeholders::_1,
            std::placeholders::_2
        )
    );
}

void ChatServer::start() {
    m_http_server->start();
    SYLAR_LOG_INFO(g_logger) << "HTTP Server stated";
    m_ws_server->start();
    SYLAR_LOG_INFO(g_logger) << "WebSocket Server started";

    SYLAR_LOG_INFO(g_logger) << "===============Server Is Running===============";
}

main

可以使用命令行参数

  • -s 终端前台运行
  • -d 守护进程后台运行
  • -p 打印帮助内容

启动后会先从conf目录加载所有配置文件，再解析命令行参数选择启动模式

int server_main(int argc, char** argv) {
    sylar::IOManager iom(4, true, "chat");
    chat::ChatServer::ptr server(
        new chat::ChatServer(4, argc, argv)
    );
    server->start();
    return 0;
}

int main(int argc, char** argv) {
    sylar::EnvMgr::GetInstance()->addHelp("s", "start with terminal");
    sylar::EnvMgr::GetInstance()->addHelp("d", "run as daemon");
    sylar::EnvMgr::GetInstance()->addHelp("p", "print help");

    if(!sylar::EnvMgr::GetInstance()->init(argc, argv)) {
        sylar::EnvMgr::GetInstance()->printHelp();
        return 0;
    }
    sylar::Config::LoadFromConfDir("conf");

    if(sylar::EnvMgr::GetInstance()->has("p")) {
        sylar::EnvMgr::GetInstance()->printHelp();
        return 0;
    }

    if(sylar::EnvMgr::GetInstance()->has("d")) {
        return sylar::start_daemon(argc, argv, server_main, true);
        return 0;
    }

    if(sylar::EnvMgr::GetInstance()->has("s")) {
        return sylar::start_daemon(argc, argv, server_main, false);
    }

    sylar::EnvMgr::GetInstance()->printHelp();
    return 0;
}

配置文件

log.yml

logs:
  - name: system
    level: info
    appenders:
      - type: FileLogAppender
        file: system.log
  - name: server
    level: info
    appenders:
      - type: StdoutLogAppender
      - type: FileLogAppender
        file: server.log
  - name: root
    level: info

server.yml

tcp_server:
  read_timeout: 120000

http_server:
  port: 8080

websocket_server:
  port: 8072

前端

这里只展示javascript部分

<script>
let websocket = null;
let logged_in = false;
let my_name = "";
let heartbeat_timer = null;
let closing_by_logout = false;
let online_count = 0;

const HEARTBEAT_INTERVAL = 30000;

function startHeartbeat() {
    stopHeartbeat();
    heartbeat_timer = setInterval(() => {
        if (websocket && websocket.readyState === WebSocket.OPEN) {
            websocket.send(JSON.stringify({ type: "ping" }));
        }
    }, HEARTBEAT_INTERVAL);
}

function stopHeartbeat() {
    if (heartbeat_timer) {
        clearInterval(heartbeat_timer);
        heartbeat_timer = null;
    }
}

function resetUIToLogin() {
    stopHeartbeat();
    logged_in = false;
    online_count = 0;

    document.getElementById("login-mask").classList.remove("hidden");
    document.getElementById("send-btn").disabled = true;
    document.getElementById("user-info").classList.add("hidden");
    document.getElementById("online-count").style.display = "none";
}

function addMessage(type, content, meta = "") {
    const box = document.getElementById("message");
    const div = document.createElement("div");
    div.className = "msg " + type;

    if (meta) {
        const m = document.createElement("div");
        m.className = "meta";
        m.innerText = meta;
        div.appendChild(m);
    }

    const text = document.createElement("div");
    text.innerText = content;
    div.appendChild(text);

    box.appendChild(div);
    box.scrollTop = box.scrollHeight;
}

function onSocketClosed() {
    websocket = null;

    if (!closing_by_logout) {
        resetUIToLogin();
        addMessage("system", "连接已断开");
    }

    closing_by_logout = false;
}

function logout() {
    if (!websocket || websocket.readyState !== WebSocket.OPEN) return;

    closing_by_logout = true;

    resetUIToLogin();
    addMessage("system", "你已退出聊天室");

    websocket.send(JSON.stringify({ type: "logout_request" }));

    setTimeout(() => {
        websocket && websocket.close(1000, "logout");
    }, 50);
}

function login() {
    const name = document.getElementById("tname").value.trim();
    if (!name) return;

    my_name = name;
    websocket = new WebSocket("ws://localhost:8072/sylar/chat");

    websocket.onopen = () => {
        websocket.send(JSON.stringify({
            type: "login_request",
            name
        }));
    };

    websocket.onmessage = e => {
        let o;
        try {
            o = JSON.parse(e.data);
        } catch (err) {
            return;
        }

        if (o.type === "pong") return;

        if (o.type === "login_response") {
            if (o.result == 200) {
                logged_in = true;
                document.getElementById("login-mask").classList.add("hidden");
                document.getElementById("send-btn").disabled = false;
                document.getElementById("user-name").innerText = my_name;
                document.getElementById("user-info").classList.remove("hidden");
                document.getElementById("online-count").style.display = "inline-block";
                addMessage("system", "登录成功");
                startHeartbeat();
            } else {
                addMessage("system", o.msg);
            }
        } else if (o.type === "online_count") {
            online_count = parseInt(o.count, 10) || 0;
            document.getElementById("online-count").innerText = `🟢 在线 ${online_count} 人`;
        } else if (o.type === "user_enter") {
            addMessage("system", `${o.name} 加入聊天室`);
        } else if (o.type === "user_leave") {
            addMessage("system", `${o.name} 离开聊天室`);
        } else if (o.type === "msg") {
            const cls = o.name === my_name ? "self" : "other";
            addMessage(cls, o.msg, o.name + " · " + o.time);
        }
    };

    websocket.onclose = onSocketClosed;
    websocket.onerror = onSocketClosed;
}

function sendmsg() {
    const input = document.getElementById("msg");
    const text = input.value.trim();
    if (!text || !logged_in) return;

    websocket.send(JSON.stringify({
        type: "send_request",
        msg: text
    }));
    input.value = "";
}

window.onload = () => {
    document.getElementById("tname").addEventListener("keydown", e => {
        if (e.key === "Enter") login();
    });
    document.getElementById("msg").addEventListener("keydown", e => {
        if (e.key === "Enter") sendmsg();
    });
};
</script>

测试

http://ayanami.blue:8080/html/index.html

聊天室已经部署到本网站服务器的8080端口

sylar后端

评论

  1. 叶宇恒
    iPhone Safari 17.6
    2 周前
    2026-3-11 15:54:25

    ！？强强？！

  4. sankkooos
    Android Chrome 142.0.7444.173
    2 周前
    2026-3-11 18:35:01

    ！？强强？！

发送评论 编辑评论



























































































|´・ω・)ノ
ヾ(≧∇≦*)ゝ
(☆ω☆)
（╯‵□′）╯︵┴─┴
￣﹃￣
(/ω＼)
∠( ᐛ 」∠)＿
(๑•̀ㅁ•́ฅ)
→_→
୧(๑•̀⌄•́๑)૭
٩(ˊᗜˋ*)و
(ノ°ο°)ノ
(´இ皿இ｀)
⌇●﹏●⌇
(ฅ´ω`ฅ)
(╯°A°)╯︵○○○
φ(￣∇￣o)
ヾ(´･ ･｀｡)ノ"
( ง ᵒ̌皿ᵒ̌)ง⁼³₌₃
(ó﹏ò｡)
Σ(っ °Д °;)っ
( ,,´･ω･)ﾉ"(´っω･｀｡)
╮(╯▽╰)╭
o(*////▽////*)q
＞﹏＜
( ๑´•ω•) "(ㆆᴗㆆ)
😂
😀
😅
😊
🙂
🙃
😌
😍
😘
😜
😝
😏
😒
🙄
😳
😡
😔
😫
😱
😭
💩
👻
🙌
🖕
👍
👫
👬
👭
🌚
🌝
🙈
💊
😶
🙏
🍦
🍉
😣
Source: github.com/k4yt3x/flowerhd





颜文字
Emoji
小恐龙
花!


















上一篇
下一篇




			        推荐文章





[Go]GopherAI项目学习记录：图像识别模块和项目启动流程





[Go]GopherAI项目学习记录：AI聊天模块





[Go]GopherAI项目学习记录：用户模块





[Go]GopherAI项目学习记录：项目框架





[Go]基于Golang的简单命令行即时聊天系统





[C++]sylar高性能服务器框架学习记录：daemon模块





[C++]sylar高性能服务器框架学习记录：HTTPConnection模块





[C++]sylar高性能服务器框架学习记录：HTTPServlet模块





[C++]sylar高性能服务器框架学习记录：HTTPServer模块





[C++]sylar高性能服务器框架学习记录：HTTP模块
